Self-Hosting II: Hosting Git
As a software developer, your online git repository plays a really large role
in your life. It ends up playing part social media, part professional resume,
part file server. It probably hosts a precious .bashrc
or .vimrc
file you
can’t live without and too many pipe dreams to count.
When I started to self-host some of the online services I depend on, this was a natural first target. It’s a service that is close to my heart, but it’s also one that would help me in the whole self-hosting process; I could use it as a place to hold my Kubernetes configurations and other self-hosting related code.
Thankfully, the quality of free and open source web based git repositories is really high. Here is a short list of the choices available:
- Gitlab: Enterprised solution with a open-source core you can host yourself
- Gogs: Awesome free and open source git server. Ships as a simple standalone binary
- Gitea Fork of Gogs. Seems to be under more active development
As I only planned to host my own account / code, Gogs or Gitea were the clear choices. Both are light on resources and super simple to deploy. Gitlab, on the other hand, seemed all too happy to eat a mountain of RAM for a modestly larger feature set. I also like that they are community driven so there is no divide between ‘community’ and ‘entreprise’ features. Of the two, I chose Gitea more or less arbitrarily (*cough* dark theme *cough*).
Implementation details
As mentioned in a previous article, I’m hosting all my services on a single node Kubernetes ‘cluster’. Here is a quick walk through of deploying Gitea using Kubernetes.
A web based git server hosts two services: the web service and an ssh service.
Once we have Gitea running, we’ll need to make these two services accessable
from the outside world. Gitea curates an official Docker image gitea/gitea
that you can use to build a deployment. By default the web service on this
image is running on port 3000 and the ssh service is running on port 22.
# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitea
labels:
app: gitea
spec:
replicas: 1
selector:
matchLabels:
app: gitea
template:
metadata:
labels:
app: gitea
spec:
containers:
- name: gitea-server
image: gitea/gitea
ports:
- containerPort: 22 # SSH service
- containerPort: 3000 # HTTP service
volumeMounts:
- mountPath: /data
name: gitea-volume
volumes:
- name: gitea-volume
hostPath:
path: /data/gitea
type: DirectoryOrCreate
Once you have this deployment running on the cluster, its time to configure the system before exposing it to the outside world. This can be done by port-forwarding the web service to you local computer.
$ kubectl port-forward gitea-xxxxxxxxx-xxxxx 3000:3000
Forwarding from 127.0.0.1:3000 -> 3000
Forwarding from [::1]:3000 -> 3000
.
.

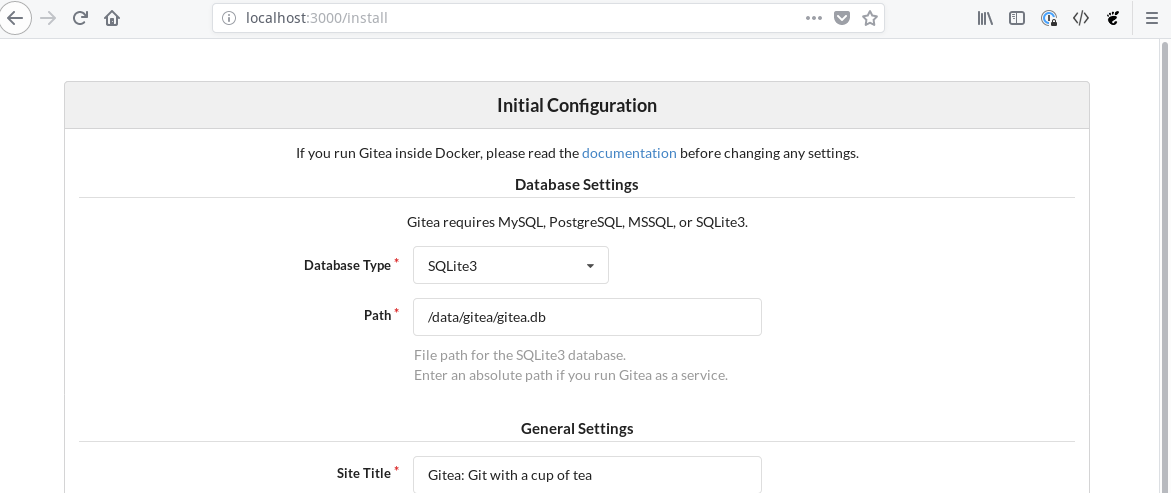

Open a browser to http://localhost:3000 and you’ll be able to create and admin user and configure some other details like the host name.
On set-up you can also disable self-registration. This is handy if you don’t
want other people to make accounts on your git server without your permission.
You’ll also need to have a little forethought here about your ssh access. I
opted to set up ssh access using a NodePort on port 30022 so I needed to set
SSH Server Port to 30022 on initial configuration. Don’t worry about messing
this up. You can also change your configuration later by ‘exec’ing into the pod
and manipulating the config with kubectl exec -it gitea-........ /bin/bash
.
The config file is at /data/gitea/conf/app.ini
by default.
Next, we’ll set up http access from the outside world. To do this we first create an service in the cluster that exposes port 3000 of the deployment and then we point an ingress resource to that service.
# http-service.yaml
apiVersion: v1
kind: Service
metadata:
name: gitea-http
labels:
app: gitea
spec:
type: ClusterIP
selector:
app: gitea
ports:
- name: http
port: 3000
protocol: TCP
# ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: gitea
spec:
tls:
- hosts:
- code.nfsmith.ca
secretName: tls-certs
rules:
- host: code.nfsmith.ca
http:
paths:
- path: /
backend:
serviceName: gitea-http
servicePort: 3000
Note the tls section of the ingress resource. If you populate a tls secret on your Kubernetes cluster with certificates from Lets Encrypt, you can secure web access to your git server using TLS! For more details on setting up Ingress, check out the last article on setting up Kubernetes for self hosting.
Finally, set up access to your SSH service. Like I mentioned before, I opted to do this with a NodePort service, put you could also do this by stipulating a host port in the deployment.
# ssh-service.yaml
apiVersion: v1
kind: Service
metadata:
name: gitea-ssh
labels:
app: gitea
spec:
type: NodePort
selector:
app: gitea
ports:
- name: ssh
port: 22
targetPort: 22
nodePort: 30022
protocol: TCP
Voila, with the NodePort service deployed you should be ready to start using your brand new git server. As with other deployments its worth checking you can reboot your server and that the git server comes back up on reboot as you expect. I’ve found that Gitea is extremely reliable against this kind of abuse (I can’t say the same for my email unfortunately..)
Final Thoughts
I’ve been happily using Gitea as my main git repository for about 2 months now with no problems. I’ve also been able to connect a CI/CD service to it using Drone which I’ll likely write about in a future article. The one role that a self-hosted git server is bad at playing is the social component. Unfortunately there don’t seem to be any git servers that support any type of federation so it is quite difficult to collaborate with other servers. There has been some discussion around this for Gitea, but it is competing against some higher priority work for the time being. Hopefully we’ll see some improvement in this type of thing in the next couple years.
